51403532 - VENTIL - FLEXICOIL
Teilenummer 51403532
LIEFERINFORMATIONEN
Andere verfügbare Optionen

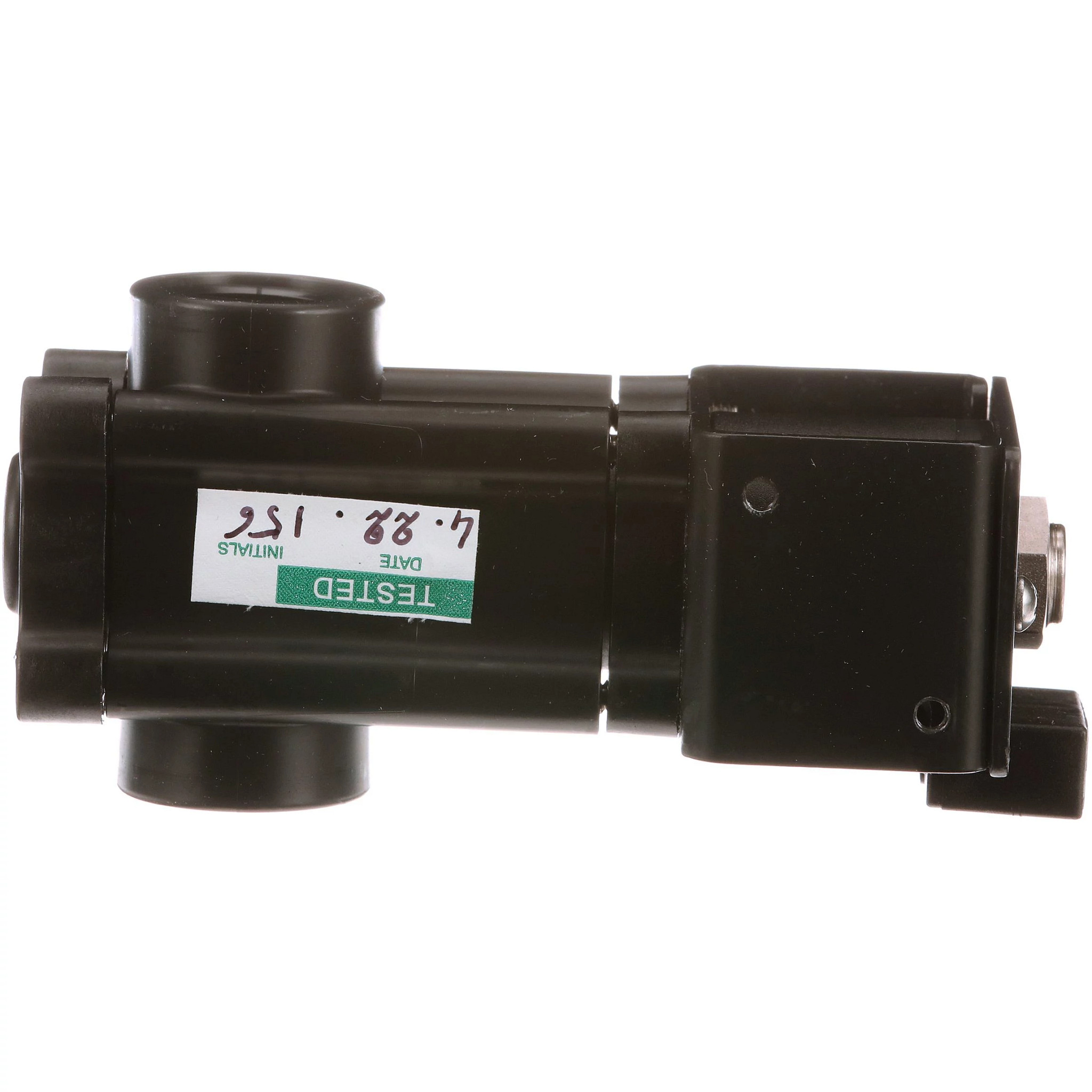

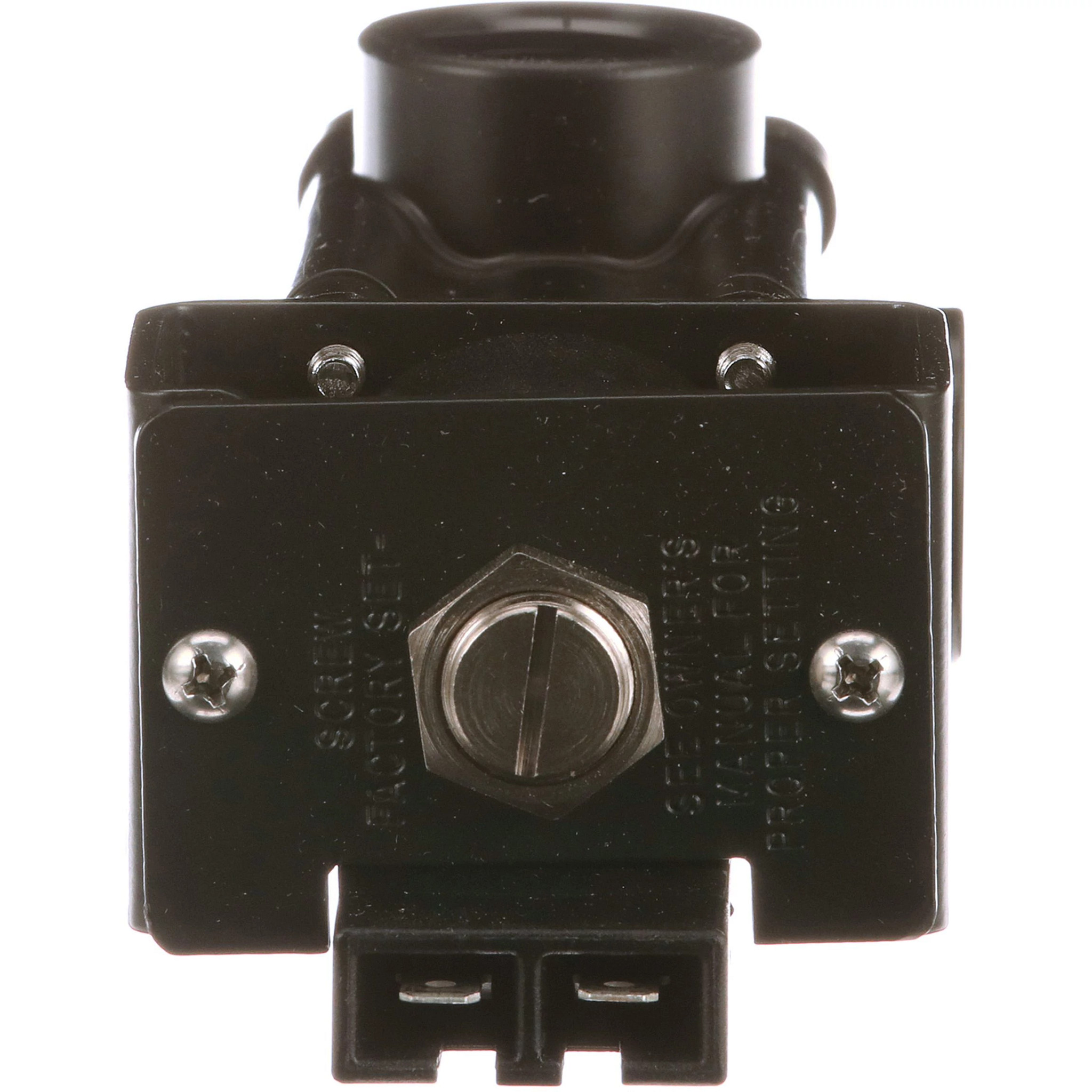

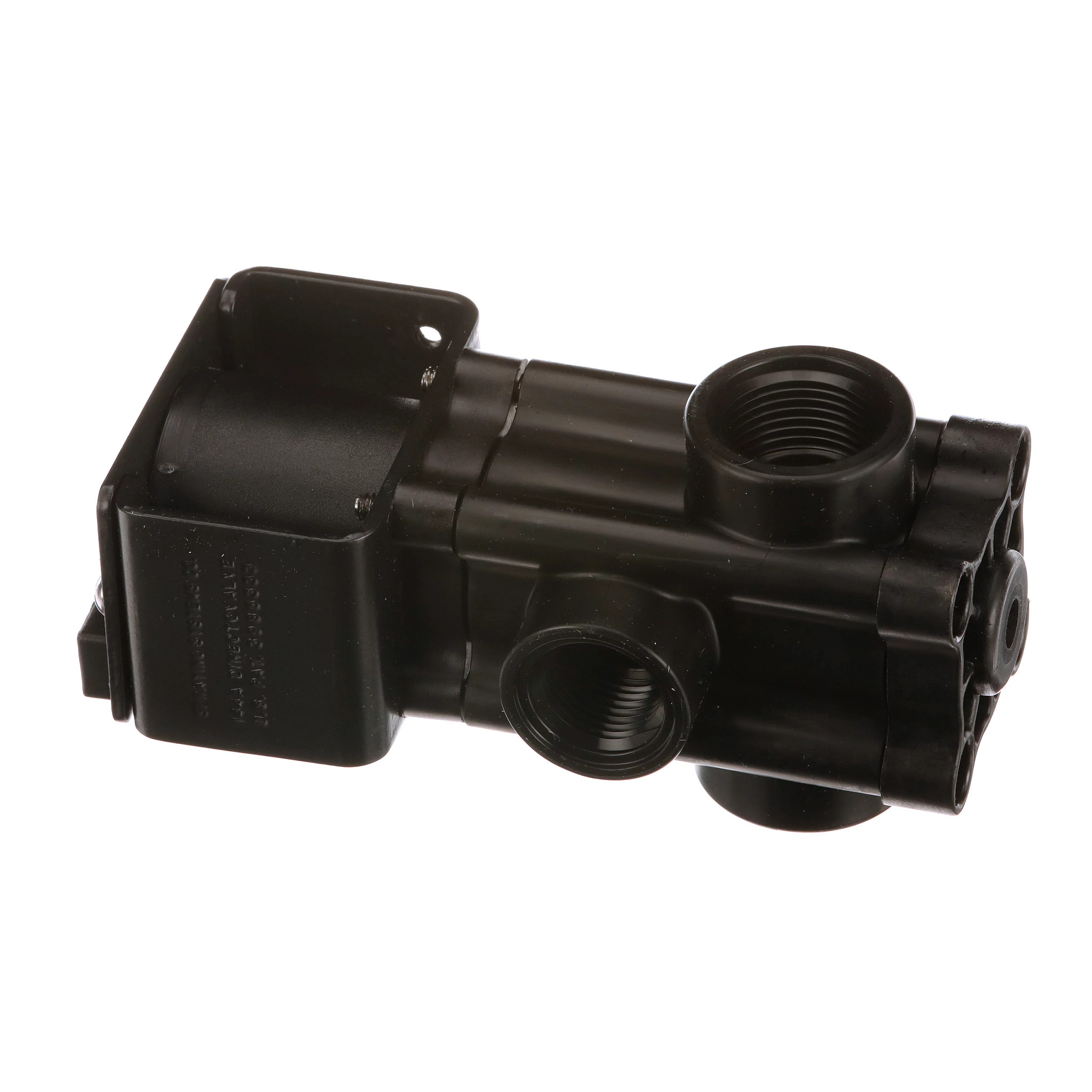

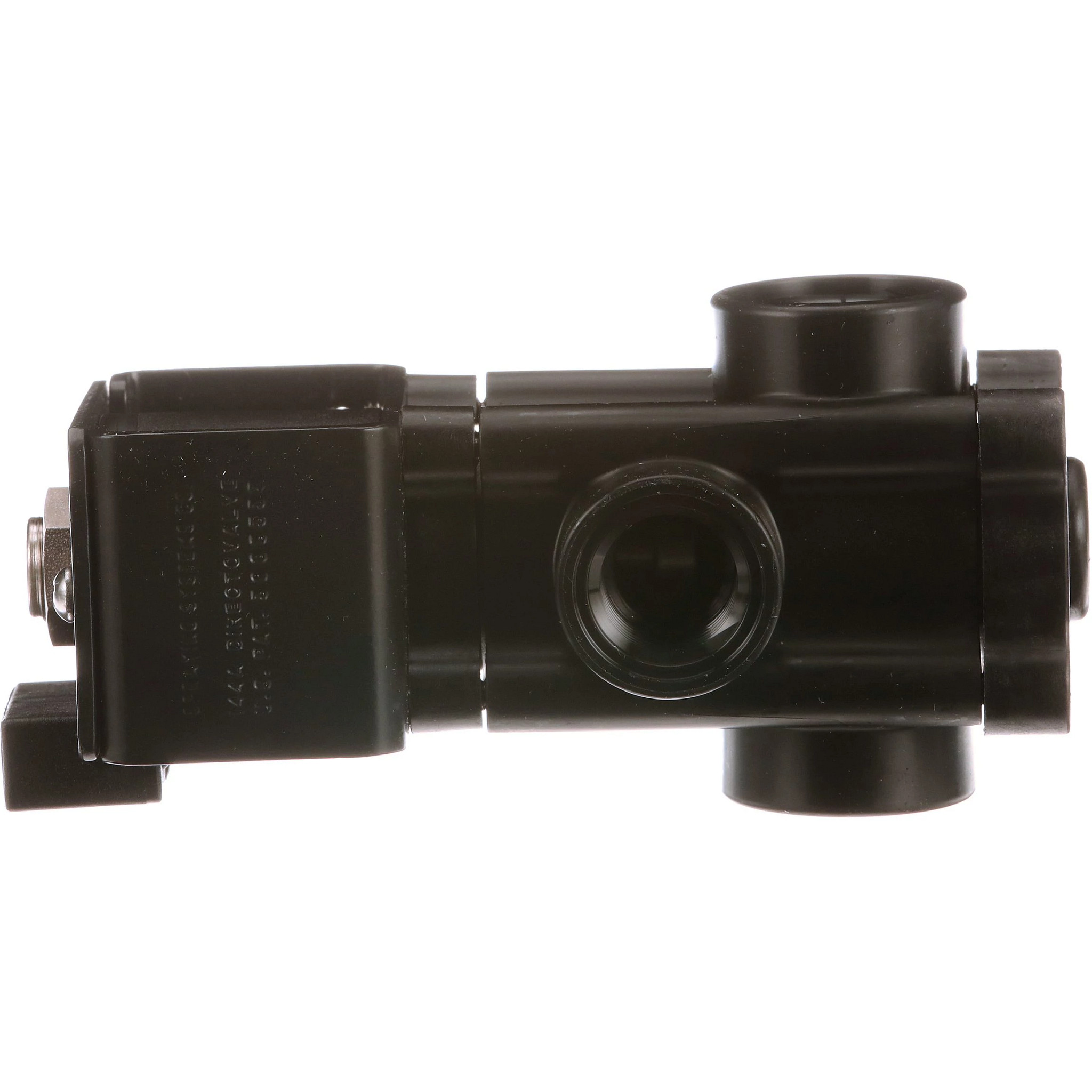

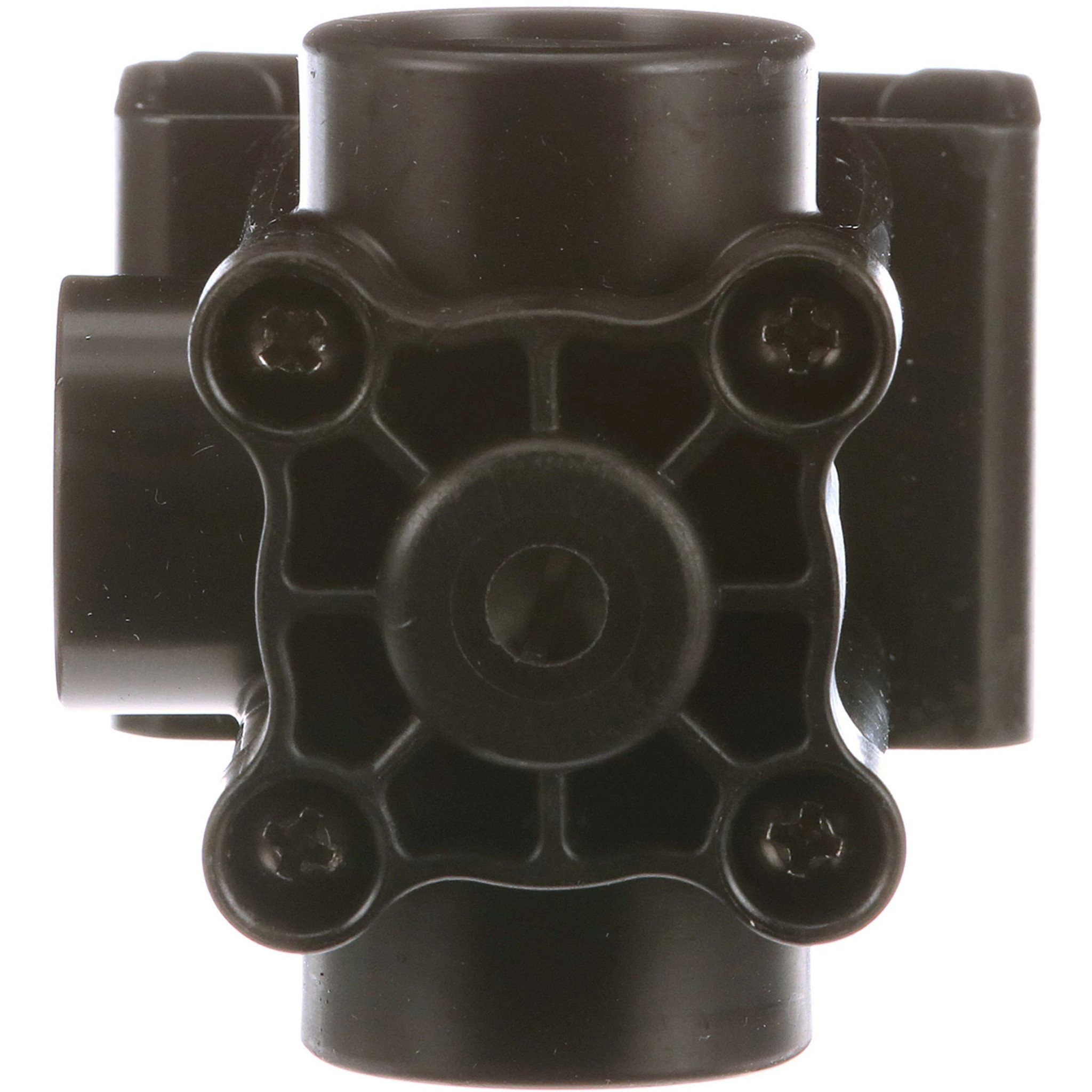

The DirectoValve® Control Valve #51403532 is direct acting. The large internal flow chamber without a pilot hole reduces the chance of clogging.
• Stainless steel wetted parts provide additional corrosion resistance
• Operates on 12 VDC system
• Encapsulated solenoid coil can be changed without removing valve from system
• EPDM diaphragms and seat washers
• Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
• Can be ganged with other 144A DirectoValve control valves
• Polypropylene body for chemical resistance
• Fabric reinforced diaphragm
Specifications:
• Flow Rate: 10 GPM (38 LPM) at 5 PSI (0.34 bar) pressure drop, 14 GPM (53 LPM) at 10 PSI (0.69 bar) pressure drop
• Maximum Pressure: 100 PSI (7 bar)
• Inlet Size: 3/4"
• Outlet Size: 1/2"
• Current Draw: 2.5-Amp
Paketgewicht:
- 0.726 kg
Verpackungseinheit
- 1
• Can be ganged with other 144A DirectoValve control valves
• Polypropylene body for chemical resistance
• Fabric reinforced diaphragm
Specifications:
• Flow Rate: 10 GPM (38 LPM) at 5 PSI (0.34 bar) pressure drop, 14 GPM (53 LPM) at 10 PSI (0.69 bar) pressure drop
• Maximum Pressure: 100 PSI (7 bar)
• Inlet Size: 3/4"
• Outlet Size: 1/2"
• Current Draw: 2.5-Amp">The DirectoValve® Control Valve #51403532 is direct acting. The large internal flow chamber without a pilot hole reduces the chance of clogging.
• Stainless steel wetted parts provide additional corrosion resistance
• Operates on 12 VDC system
• Encapsulated solenoid coil can be changed without removing valve from system
• EPDM diaphragms and seat washers
• Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
• Can be ganged with other 144A DirectoValve control valves
• Polypropylene body for chemical resistance
• Fabric reinforced diaphragm
Specifications:
• Flow Rate: 10 GPM (38 LPM) at 5 PSI (0.34 bar) pressure drop, 14 GPM (53 LPM) at 10 PSI (0.69 bar) pressure drop
• Maximum Pressure: 100 PSI (7 bar)
• Inlet Size: 3/4"
• Outlet Size: 1/2"
• Current Draw: 2.5-Amp
