G-33 - FUEL PUMP AND CONNECTIONS, 574, 674, 2500A, 2500B, 2505B, 2510B AND 2514B TRACTORS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

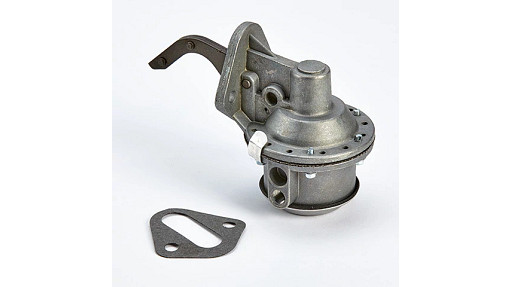

404769R91

Description

KIT; PUMP ASSY, fuel, 574, 674, 2500A, 2500B, 2505B, 2510B and 2514B tractors


Alts

Select

Ref.

1

Qty

1

Availability

Part #

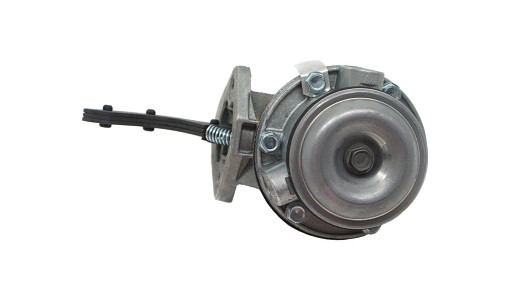

404769R91R

Description

REMAN-FUEL LIFT PUMP REMAN-FUEL LIFT PUMP; PUMP ASSY, fuel, 574, 674, 2500A, 2500B, 2505B, 2510B and 2514B tractors


Alts

Select

Ref.

1

Qty

1

Availability

Part #

404769R91C

Description

CORE-FUEL LIFT PUMP CORE-FUEL LIFT PUMP; PUMP ASSY, fuel, 574, 674, 2500A, 2500B, 2505B, 2510B and 2514B tractors


Alts

Select

Ref.

1

Qty

1

Availability

Part #

535682R91

Description

PUMP; ASSY, fuel, 3500A tractors


Alts

Select

Ref.

Qty

2

Availability

Part #

179818

Description

BOLT Hex, 5/16'' - 18 x 1'', Gr 5;


Alts

Select

Ref.

Qty

2

Availability

Part #

103320

Description

LOCK WASHER 5/16''; WASHER, LOCK, 5/16''


Alts

Select

Ref.

Qty

2

Availability

Part #

95-11034

Description

WASHER 1/4''; 11-32 x 11/16 x .051


Alts

Select

Ref.

2

Qty

1

Availability

Part #

404767R1

Description

TUBE; ASSY, fuel; (SN Break) Between pump and carburetor


Alts

Select

Ref.

3

Qty

1

Availability

Part #

222-1024

Description

ELBOW 90 Degree, 1/2''-20 Inv Fl x 1/8'' NPT; 1/8-27 90 deg inverted tube


Alts

Select

Ref.

4

Qty

1

Availability

Part #

532496R1

Description

GASKET; fuel pump


Alts
