35.310.AP[650] - LIVE 3RD, QC6c-L3
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

LDR60090336

Description

COUPLING; Live3, QC6c-L3, ASSY, Incl 2-15


Alts

Select

Ref.

2

Qty

1

Availability

Part #

LDR5050442

Description

SCREW;


Alts

Select

Ref.

3

Qty

1

Availability

Part #

51410678

Description

BRACKET; Hose


Alts

Select

Ref.

4

Qty

2

Availability

Part #

120228

Description

HEX SOC SCREW M8 x 20mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

5

Qty

2

Availability

Part #

68841

Description

LOCK NUT Hex, M8 x 1.25, Cl 8, ZND;


Alts

Select

Ref.

6

Qty

2

Availability

Part #

51410680

Description

ADAPTER 1/2'' x 3/8'';


Alts

Select

Ref.

7

Qty

2

Availability

Part #

LDR60020329

Description

NUT;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

51410640

Description

PROTECTIVE SLEEVE Braided Sleeving;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

51410629

Description

HOSE CLAMP;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

43133

Description

BOLT Hex, M8 x 1.25 x 80mm, Cl 8.8;


Alts

Select

Ref.

11

Qty

2

Availability

Part #

51412560

Description

HOSE 3/8'' x 3988mm L;


Alts

Select

Ref.

12

Qty

2

Availability

Part #

48172087

Description

SEALING WASHER Tredo 18;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

48172314

Description

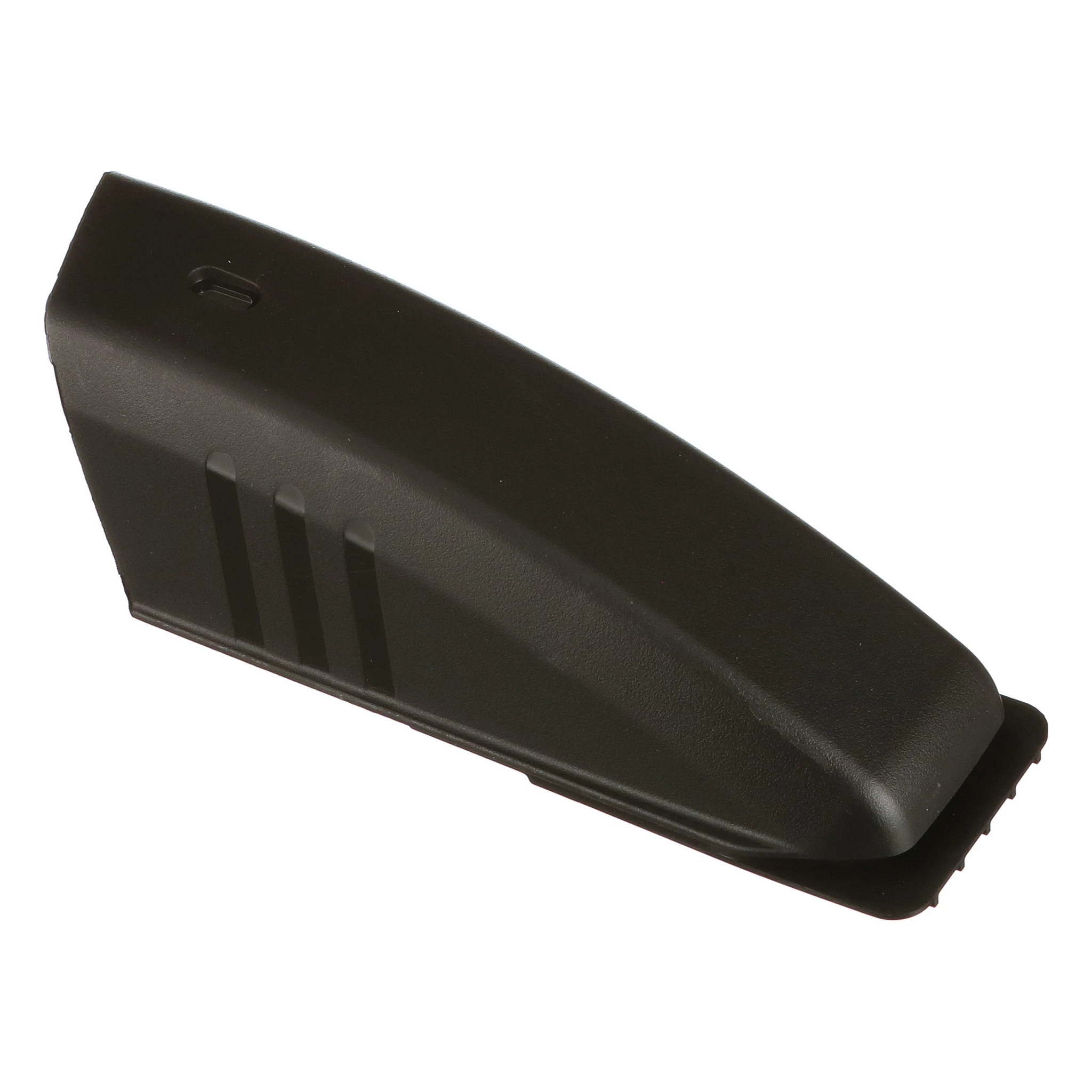

COVER L3RD; L3rd


Alts

Select

Ref.

14

Qty

2

Availability

Part #

LDR59021046

Description

COUPLING;


Alts

Select

Ref.

15

Qty

1

Availability

Part #

LDR60037972

Description

BRACKET; Hose


Alts
