07B01 - 6 SPEED TRANSMISSION CASE, SHIFT LEVERS & RELATED PARTS
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Live PTO (L/Gear Shift Cover), 2100, 2120, 2300, 2310 (U.K.-Antwerp);No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Trans. PTO (L/Gear Shift Cover), 2100, 2110, 2120, 2310;No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Trans. PTO (L/Gear Shift Cover), 3100;No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Trans. PTO (L/Gear Shift Cover), 3400, 3500 (U.S.);No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., Less PTO (L/Gear Shift Cover), 3400, 3500;No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Trans. PTO (25 K.P.H. Transmission), U.K.-Antwerp 2100, 2310;No Longer Serviced - order components.
  • 1
    NSS
    NOT SOLD SEPARAT; Trans. Assy., W/Live PTO (25 K.P.H. Transmission), U.K.-Antwerp 2100, 2300, 2310;No Longer Serviced - order components.
  • 1
    1
    D9NN7005CB
    LOAD DECK; Case Assy., Trans., Includes: Case Plus Ref. 2 & 3
  • 2
    2
    C5NN7A615B
    BUSHING; Clutch Release Cross Shaft
  • 2
    2
    C5NN7A615A
    BUSHING; Clutch Release Cross Shaft
  • 3
    2
    379304S
    DOWEL 1/2'' x 13/16'' L; Pin, 1/2'' x 13/16'' L
  • 4
    1
    72036S36
    COTTER PIN 5/32'' x 1''; Pin, Split Cotter, 5/32'' x 1''
  • 5
    1
    263136
    MAGNETIC PLUG Sq. Soc, 3/4'' - 14 NPTF; PLUG, MAGNETIC, Sq. Soc, 3/4''-14 NPTF
  • 5
    1
    87811S36
    DRAIN PLUG 3/4''-14; PLUG, DRAIN, , Sq Hd, NPTF 3/4''-14
  • 6
    1
    9617020
    PLUG 1/4'' - 18 x 0.48''; Pipe, HS, 1/4''-18, NPTF
  • 6
    1
    87709S2
    PLUG; 1/4''-18 NPTF Soc. Hd.
  • 8
    2
    P0401846
    SCREW; Cap, HH, G5, 3/4''-16 x 2-3/4''
  • 10
    2
    408
    NUT 5/8'' - 18, Gr 5; G5, 5/8''-18
  • 11
    2
    304883S36
    SCREW; Cap, HH, G5, 5/8''-11 x 2-3/8''
  • 12
    2
    304956S36
    BOLT; Screw, Cap, HH, G5, 5/8''-18 x 3-3/4''
  • 14
    2
    280244
    BOLT Hex, 7/16'' - 14 x 3/4'', Gr 5, Full Thd; Screw, Cap, HH, G5, 7/16''-14 x 3/4''
  • 1
    138188
    BEARING COVER; Button, 13/32'', Trans. Greaser Hole
  • 15
    1
    C5NN7231A
    FORK; Gear Shift (1 & 3) & (2 & 5)
  • 16
    1
    81804929
    FORK; Gear Shift (High-Low)
  • 17
    1
    C5NN7231J
    FORK; Gear Shift (4 & 6)
  • 18
    1
    C5NN7230E
    FORK; Assy., Gear Shift (Reverse), Includes: Fork Plus Ref. 19 & 20
  • 19
    1
    76286S36
    CLEVIS PIN; Pin, Clevis, 3/16'' x 1-15/32''
  • 20
    1
    280236
    COTTER PIN 1/16'' x 1/2''; Pin, Split (Cotter), 1/16'' x 1/2''
  • 21
    5
    957E7245
    SET SCREW Hex, 3/8'' - 24 x 1''; SCREW, SET, , Gear Shift Fork Lock Hex, 3/8''-24 x 1''
  • 22
    5
    86509310
    NUT 3/8'' - 24, Gr 5; G5, 3/8''-24
  • 23
    3
    379678S
    PIN 3/8'' x 1.26''; Straight 3/8'' x 1.26''
  • 2
    NSS
    NOT SOLD SEPARAT;
  • 23
    1
    352662S
    PIN; 3/8'' x 1.035
  • 24
    1
    C5NN7240A
    SPINDLE; Rail, Gear Shift
  • 25
    1
    NLS
    NO LONGER SERVICED; Rail, Gear Shift (High & Low);C5NN7240C

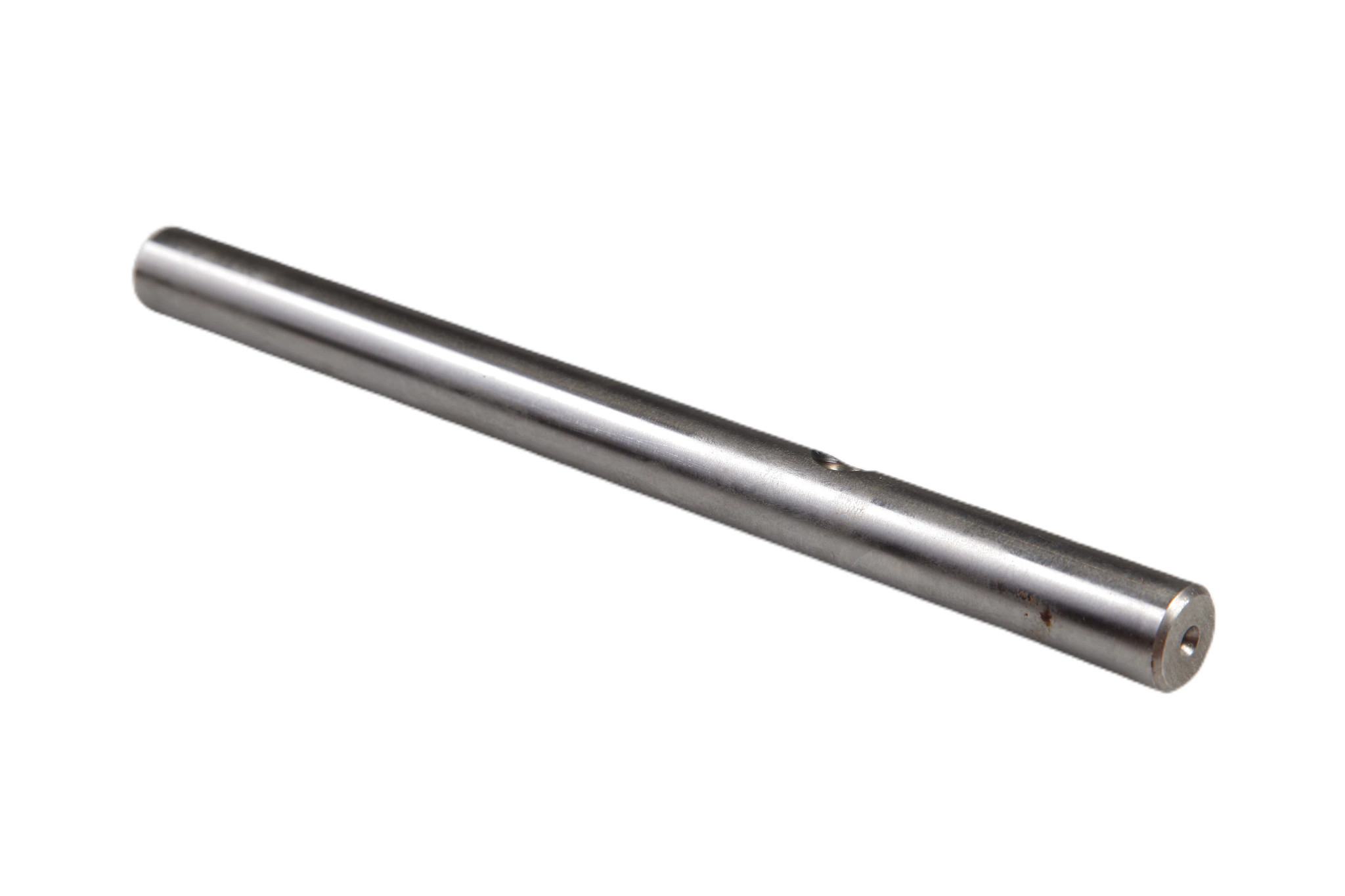

  • 25
    1
    81814738
    SHAFT; Rail, Gear Shift (High & Low)
  • 26
    1
    C5NN7240G
    SPINDLE; Rail, Gear Shift
  • 27
    1
    9617020
    PLUG 1/4'' - 18 x 0.48''; Pipe, HS, 1/4''-18, NPTF
  • 28
    1
    C5NN7229B
    DOWEL .373'' x .723'' L; Interlock, Gear Shift Rail .373'' x .723'' L
  • 29
    1
    D9NN7279AA
    DOOR; Gate, Gear Shift Shaft
  • 30
    1
    E5NN7N103AA
    COUPLING; Connector, Gear Shift Lever to 6th, 3rd, 4th & 1st Rail
  • 30
    1
    E5NN7N103AA
    COUPLING; Connector, Gear Shift Lever to 6th, 3rd, 4th & 1st Rail
  • 31
    3
    797234
    SPRING; Gear Shift Rail
  • 32
    3
    145222
    BALL BEARING 9.53mm OD, Gr 1000; Steel, Detent 3/8''
  • 33
    1
    C5NN7211F
    COVER; Assy., Case, Pressed Steel
  • 34
    1
    82004680
    GASKET 1mm Thk; Case Cover
  • 35
    8
    80680
    LOCK WASHER 3/8 0.381 CST ZND; WASHER, LOCK, 3/8''
  • 36
    8
    88434
    BOLT Hex, 3/8'' - 16 x 3/4'', Gr 5; Screw, Cap, HH, G5, 3/8''-16 x 3/4''
  • 36A
    1
    C5NN7N176C
    BOLT; Dowel, Safety Starter Switch Plunger;No Longer Serviced.
  • 37
    1
    D9NN7037AA
    GASKET; Filler Plug
  • 38
    1
    957E7010
    PLUG; Case Filler
  • 39
    1
    C5NN7210D
    LEVER; Main Gear Change
  • 39
    1
    C7NN7210K
    LEVER; Main Gear Change, 13-1/4'' Lg.
  • 39
    1
    C7NN7210AD
    LEVER; Main Gear Change, 13-1/4'' Lg.
  • 39
    1
    C7NN7210AF
    LEVER; Main Gear Change, 17'' Lg.
  • 40
    1
    C5NN7210V
    LEVER; High-Low Gear Shift;No Longer Serviced.
  • 40
    1
    C7NN7210AC
    LEVER; High-Low Gear Shift
  • 40A
    2
    128359
    O-RING 0.07'' Thk x 0.614'' ID, -16, Cl 5, 75 Duro; -016, 70 Duro, .614'' ID x .070'' Thk
  • 41
    2
    D7NN7C402A
    PIN; Gear Shift Lever Retaining

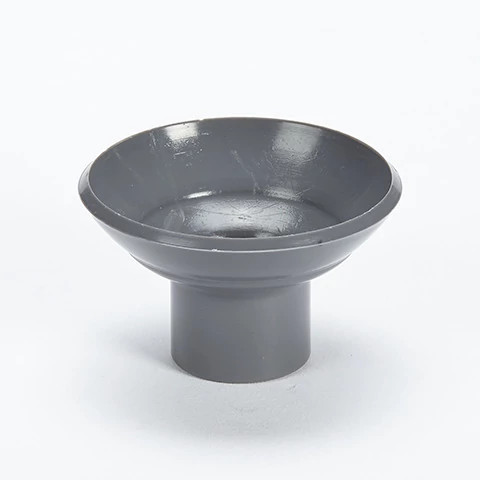

  • 42
    2
    82007346
    RETAINER; Gear Shift Lever Ball

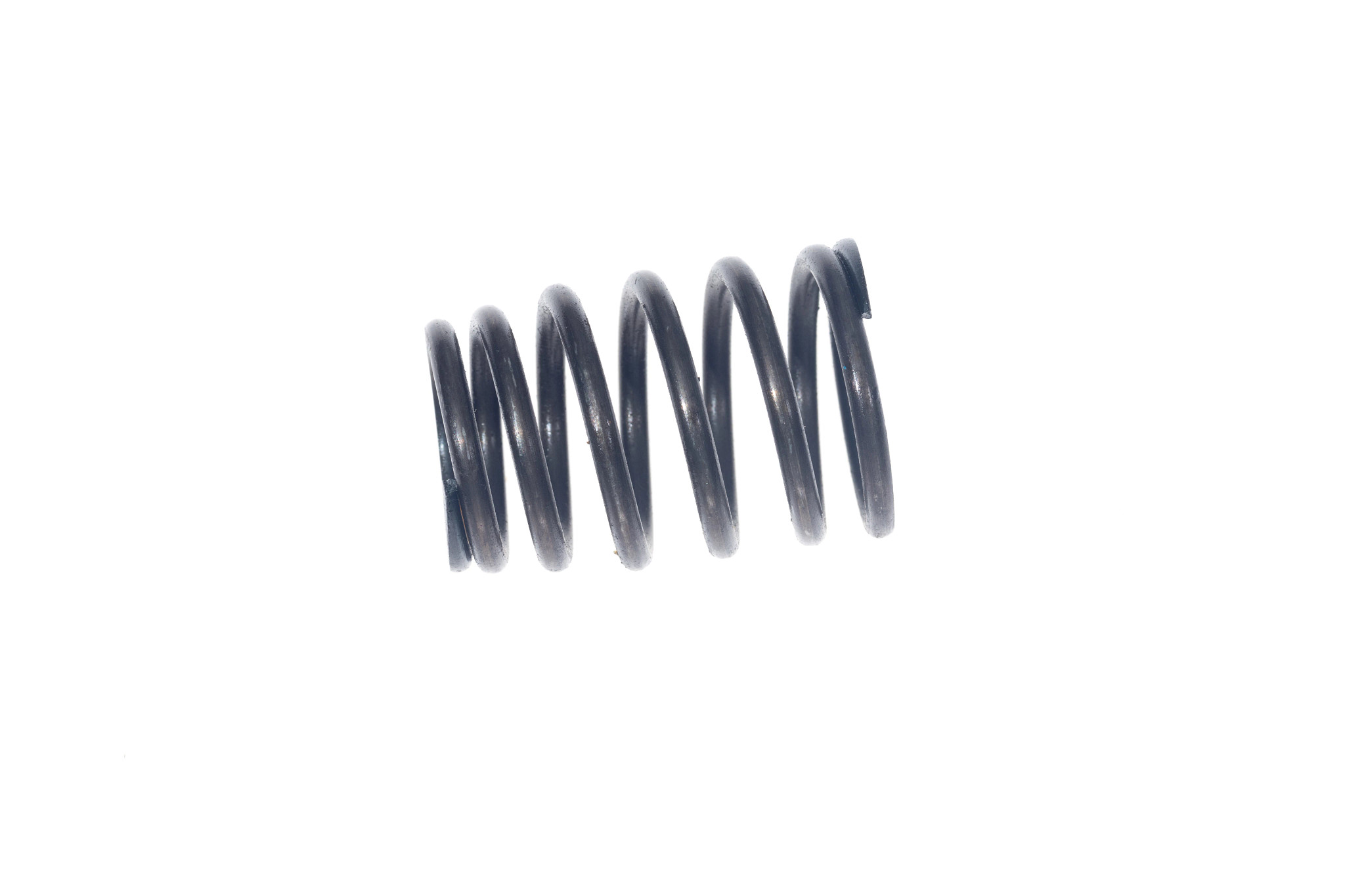

  • 43
    2
    C7NN7227A
    COMPRESSION SPRING Compression, 30.739mm OD x 45.719mm L; Gear Shift Lever
  • 44
    2
    N7228
    VALVE SEAT; Ring, Snap, Gear Shift Lever Spring
  • 45
    1
    81804882
    BALL 5/16 - 24 Threads; Main Gear Change Lever, 1-5/8'' Dia. (Replaces C5NN7213A)

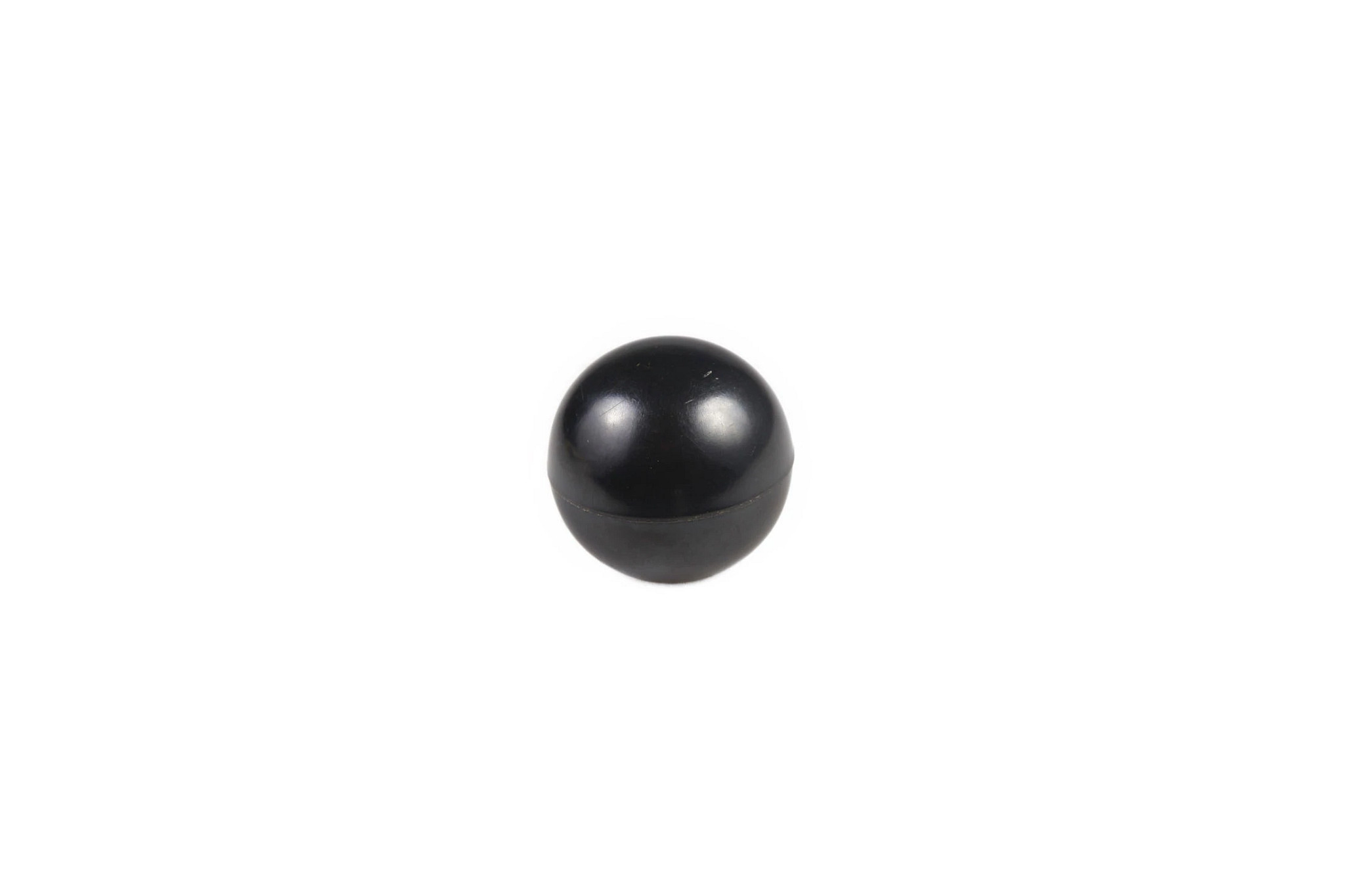

  • 46
    1
    E440GB9
    BALL; High-Low Gear Shift, 1-1/4'' Dia.
  • 47
    1
    C5NN11N500A
    SWITCH; Starter Safety
  • 47A
    1
    9672467
    O-RING 0.103'' Thk x 0.549'' ID, -113, Cl 5, 75 Duro; .562'' ID x .103'' Thk
  • 48
    1
    C5NN11467H
    PLUNGER; Starter Safety Switch
  • 49
    1
    C5NN11N520A
    ROLLER; Starter Safety Switch
  • 50
    1
    C5NN11N517B
    SPARE PART; Connector, Starter Safety Switch, U.S. Only, U.K.-Antwerp to Procure Locally
  • 50A
    1
    C5NN7N177A
    PLATE; Assy., Gear Shift Oil Baffle;No Longer Serviced.
  • 50B
    1
    C5NN7N178B
    PLATE; Gear Shift Oil Baffle;No Longer Serviced.
  • 50C
    1
    44747S2
    WASHER; 3/4''
  • 50D
    1
    375217S36
    WASHER 3/4'', .79'' x 1.72'' x .13'' Thk;
  • 50D
    2
    NSS
    NOT SOLD SEPARAT; Washer, Flat, .76 I.D. x 1.72
  • 50E
    2
    355137S
    BOLT; HH, #10-32 x 3/8'';No Longer Serviced.
  • 51
    1
    C5NN11N499A
    PLATE; Starter Switch Support, U.S. Only
  • 52
    2
    355431S
    BOLT; Hex Drilled Hd., 5/16''-18 x 5/8''
  • 53
    1
    D9NN7B226FA
    STOP; Gear Shift Lever
  • 54
    3
    55712S7
    NUT; Lock, Prevailing Torque, G5, 5/16''-24
  • 55
    1
    C5NN11N001B
    PIN 9.44mm OD x 59.69mm L; Safety Starter Switch Locating, 2.35''
  • 56
    1
    81815256
    DOWEL; Case Cover

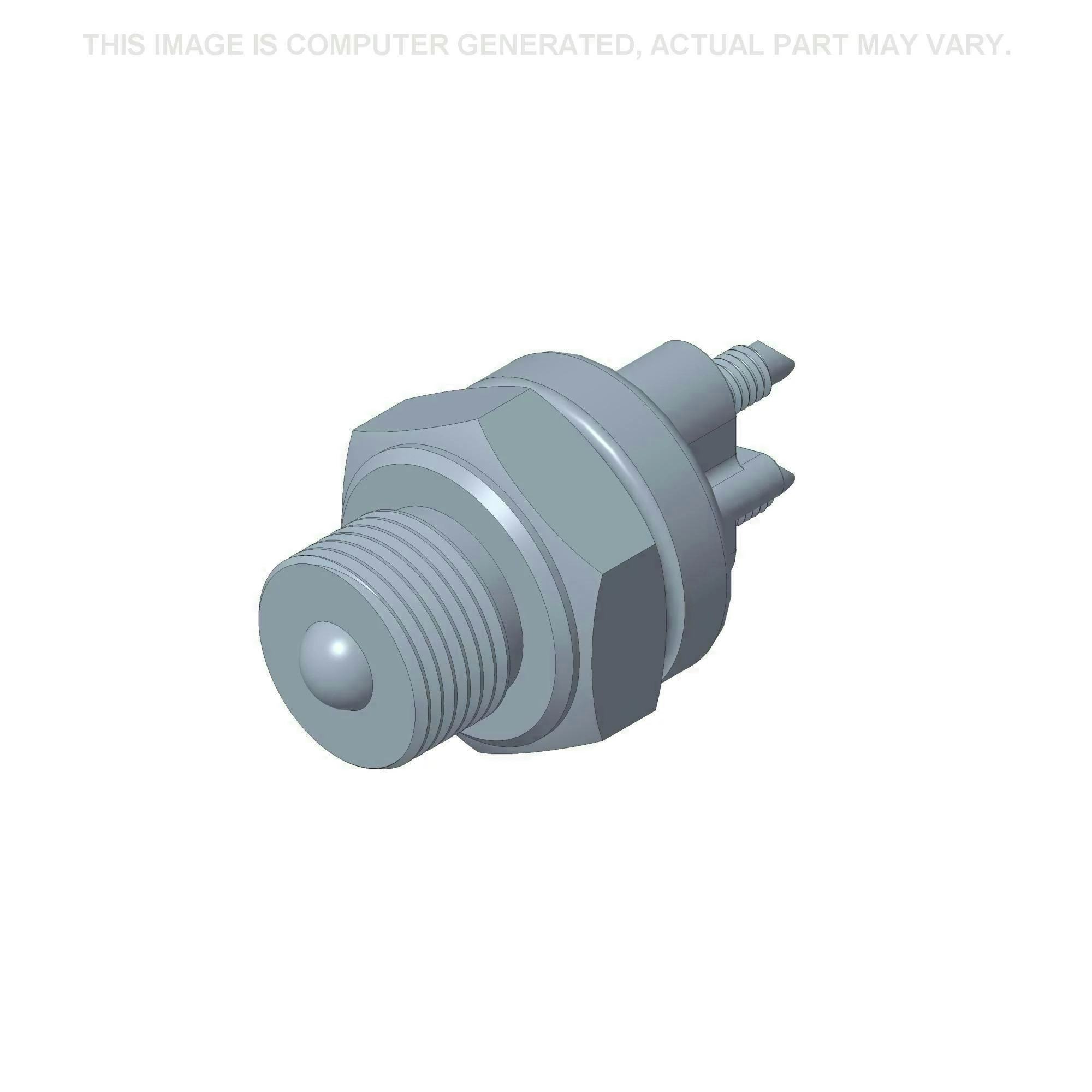

  • 57
    1
    81817901
    NEUTRAL START SWITCH; Switch, Safety Starter

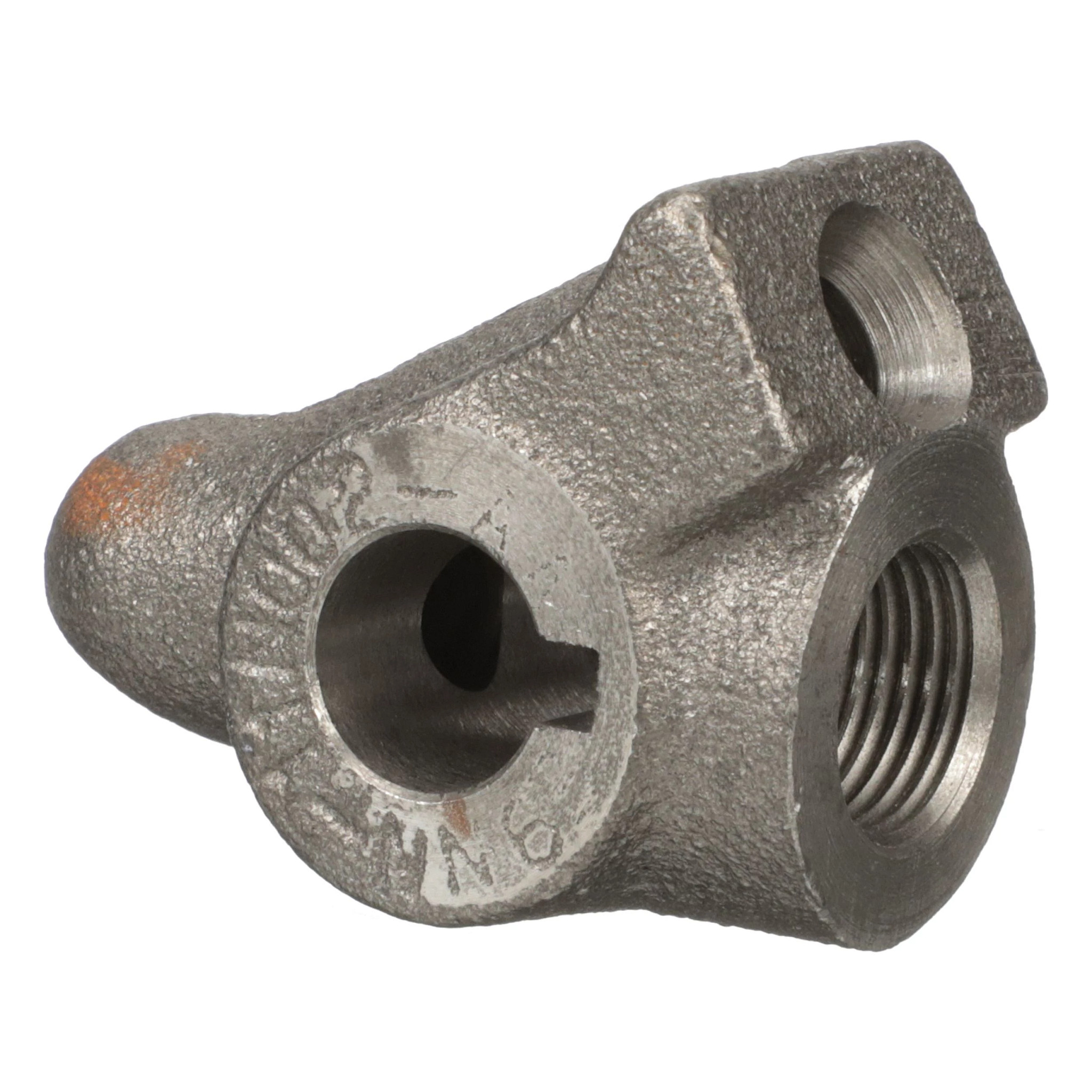

  • 58
    1
    E1NN11N002AA
    RETAINER; Safety Starter Switch
  • 59
    1
    C5NN11N003B
    SPRING; Safety Starter Switch
  • 60
    1
    145222
    BALL BEARING 9.53mm OD, Gr 1000; Steel 3/8''

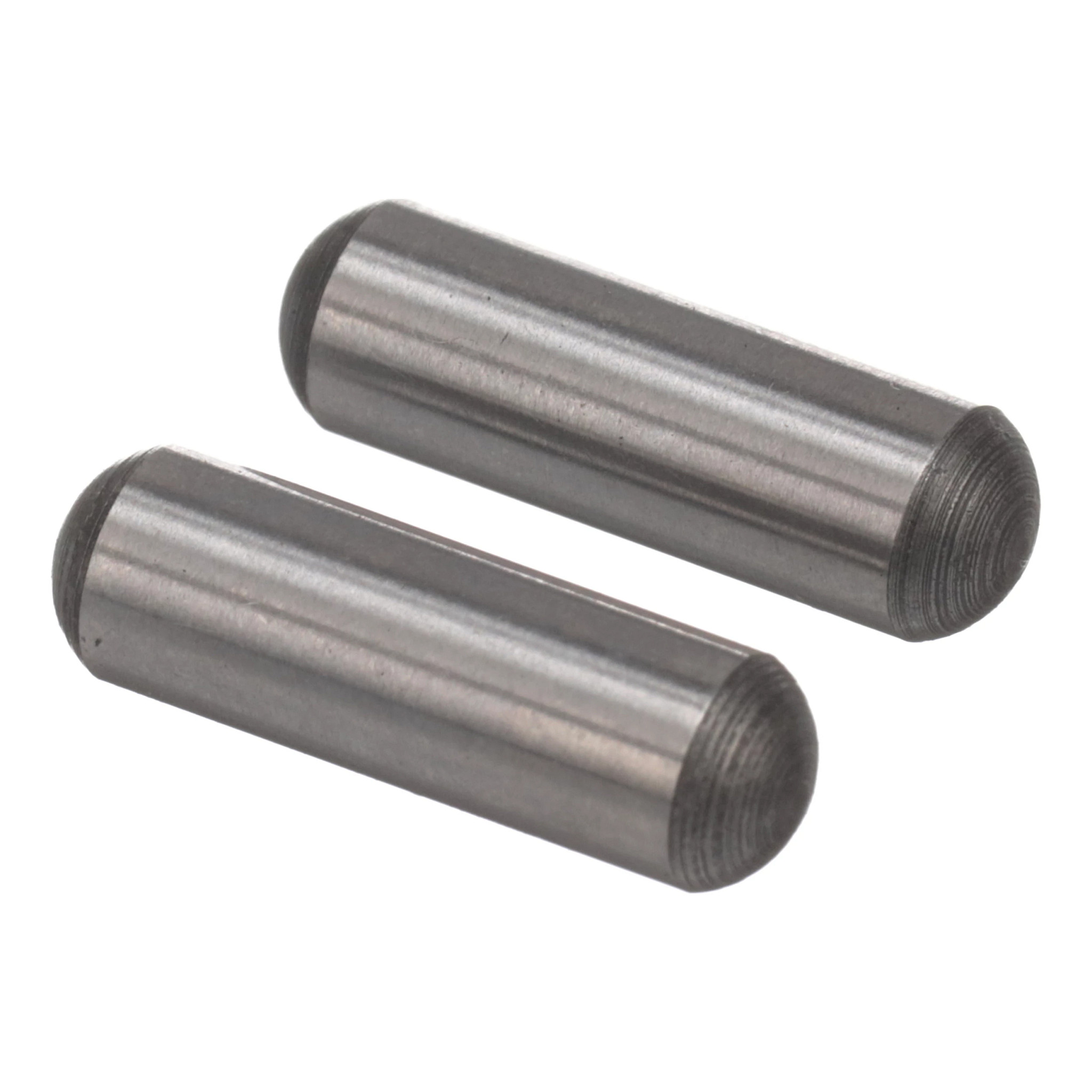

  • 61
    1
    C5NN11467R
    PIN 4.72mm OD x 15.75mm L; Safety Starter Switch
  • 62
    1
    E4NN7A488BB
    WIRE HARNESS; Wire Assy., Safety Starter Switch
  • 63
    1
    D0NN14N204B
    SWITCH; Clip, Safety Starter Switch Wire Assy.
  • 1
    375394S
    GROMMET; .34 I.D. x .061 Groove x .31 Thick, U.K.-Antwerp, Except 3500
  • 1
    353873S
    GROMMET; .37 I.D. x .12 Groove x .50 Thick, U.K.-Antwerp, Except 3500 & 3550
  • 1
    NSS
    NOT SOLD SEPARAT; Grommet, .37 I.D. x .12 Groove x .50 Thick, U.S., Except 3500 & 3550
  • 1
    D1NN3A566A
    GROMMET; 1/2'' ID x 11/32'' Thk, Replaces D4NN11N507A
