55.100.01 - ELECTRICAL WIRING
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

MT40230109

Description

WIRE HARNESS; Front


Alts

Select

Ref.

3

Qty

5

Availability

Part #

MT40012891

Description

WIRE 7.5mm W x 220mm L; 220L x 7.5W


Alts

Select

Ref.

4

Qty

3

Availability

Part #

MT40012938

Description

WIRE 5mm W x 210mm L; 210L x 5w


Alts

Select

Ref.

5

Qty

1

Availability

Part #

MT40012733

Description

CLAMP 10mm W x 140mm L; 10W x 140L


Alts

Select

Ref.

6

Qty

4

Availability

Part #

MT40012735

Description

CLAMP 10mm W x 95mm L; 10W x 95L


Alts

Select

Ref.

7

Qty

1

Availability

Part #

MT40235731

Description

HORN;


Alts

Select

Ref.

8

Qty

1

Availability

Part #

MT40029006

Description

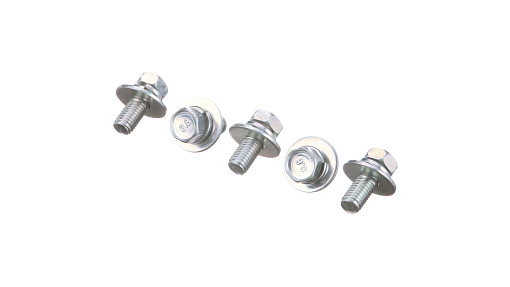

BOLT Hex, M8 x 1.25 x 20mm;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

MT40235366

Description

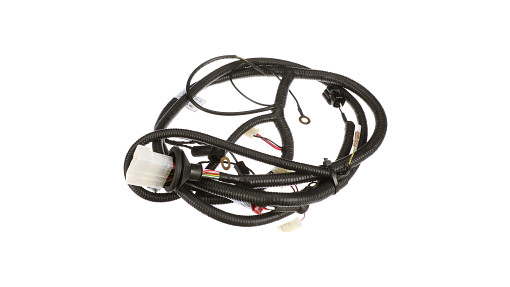

WIRE HARNESS; Engine


Alts

Select

Ref.

10

Qty

1

Availability

Part #

MT40229793

Description

WIRE HARNESS; MAIN 12X12


Alts

Select

Ref.

11

Qty

1

Availability

Part #

MT40229794

Description

WIRE HARNESS; MAIN HST


Alts

Select

Ref.

12

Qty

2

Availability

Part #

MT40012875

Description

WIRE;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

MT40229982

Description

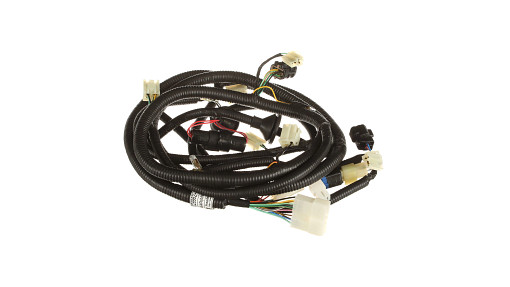

WIRE HARNESS; Rear, 12x12


Alts

Select

Ref.

14

Qty

1

Availability

Part #

MT40235356

Description

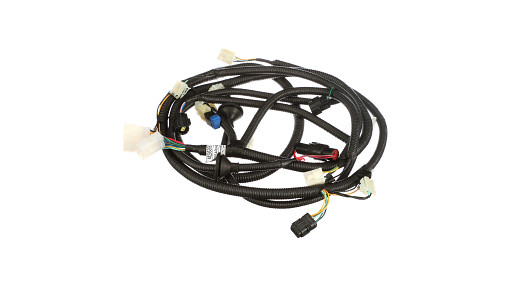

WIRE HARNESS; Rear, HST


Alts

Select

Ref.

15

Qty

2

Availability

Part #

MT40007022

Description

HARNESS;


Alts

Select

Ref.

16

Qty

1

Availability

Part #

MT40007141

Description

HARNESS;


Alts

Select

Ref.

17

Qty

1

Availability

Part #

MT40186104

Description

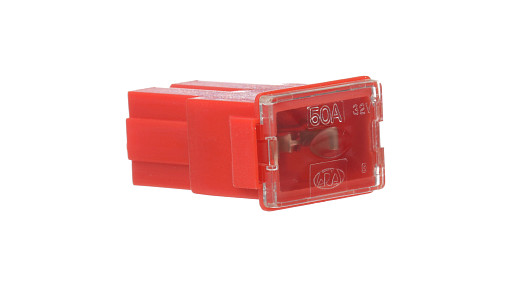

FUSE 50A; Main 50 amp


Alts

Select

Ref.

18

Qty

1

Availability

Part #

84360959

Description

JUMPER 765mm L; JUMPER, Worklight


Alts
