41.101.AB[01] - STEERING COLUMN
TABLE OF CONTENTS
DIAGRAM
PART LIST
Clear callout
Serial Number Window
Build Date
Select All
Ref.
Qty
Part #
Alts
Description
Select All

Select

Ref.

1

Qty

1

Availability

Part #

87739482

Description

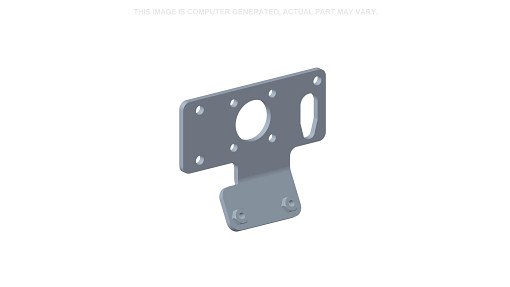

BRACKET; Steering Column Mount


Alts

Select

Ref.

2

Qty

1

Availability

Part #

1977448C2

Description

WASHER; Support, Boot


Alts

Select

Ref.

3

Qty

1

Availability

Part #

87448446

Description

PEDAL; Steering Adjust


Alts

Select

Ref.

4

Qty

2

Availability

Part #

282892A1

Description

BUSHING 8mm ID x 9.6mm OD x 8mm L;


Alts

Select

Ref.

5

Qty

1

Availability

Part #

829-1508

Description

NUT M8, Cl 10;


Alts

Select

Ref.

6

Qty

1

Availability

Part #

86637961

Description

BOLT Hex, M8 x 30mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

7

Qty

1

Availability

Part #

311812A1

Description

SPRING; Extension


Alts

Select

Ref.

8

Qty

1

Availability

Part #

729-845

Description

CLEVIS PIN M8 x 45;


Alts

Select

Ref.

9

Qty

1

Availability

Part #

733-2012

Description

COTTER PIN M2 x 12;


Alts

Select

Ref.

10

Qty

1

Availability

Part #

323657A1

Description

PAD; Foot Release Pedal


Alts

Select

Ref.

11

Qty

9

Availability

Part #

895-11010

Description

WASHER 11mm ID x 20mm OD x 2mm Thk;


Alts

Select

Ref.

12

Qty

11

Availability

Part #

829-1410

Description

NUT M10 x 1.5, Cl 10.9;


Alts

Select

Ref.

13

Qty

1

Availability

Part #

87640973

Description

STEERING COLUMN;


Alts

Select

Ref.

14

Qty

2

Availability

Part #

614-10030

Description

BOLT Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd;


Alts

Select

Ref.

15

Qty

4

Availability

Part #

47535880

Description

HEX SOC SCREW;


Alts
