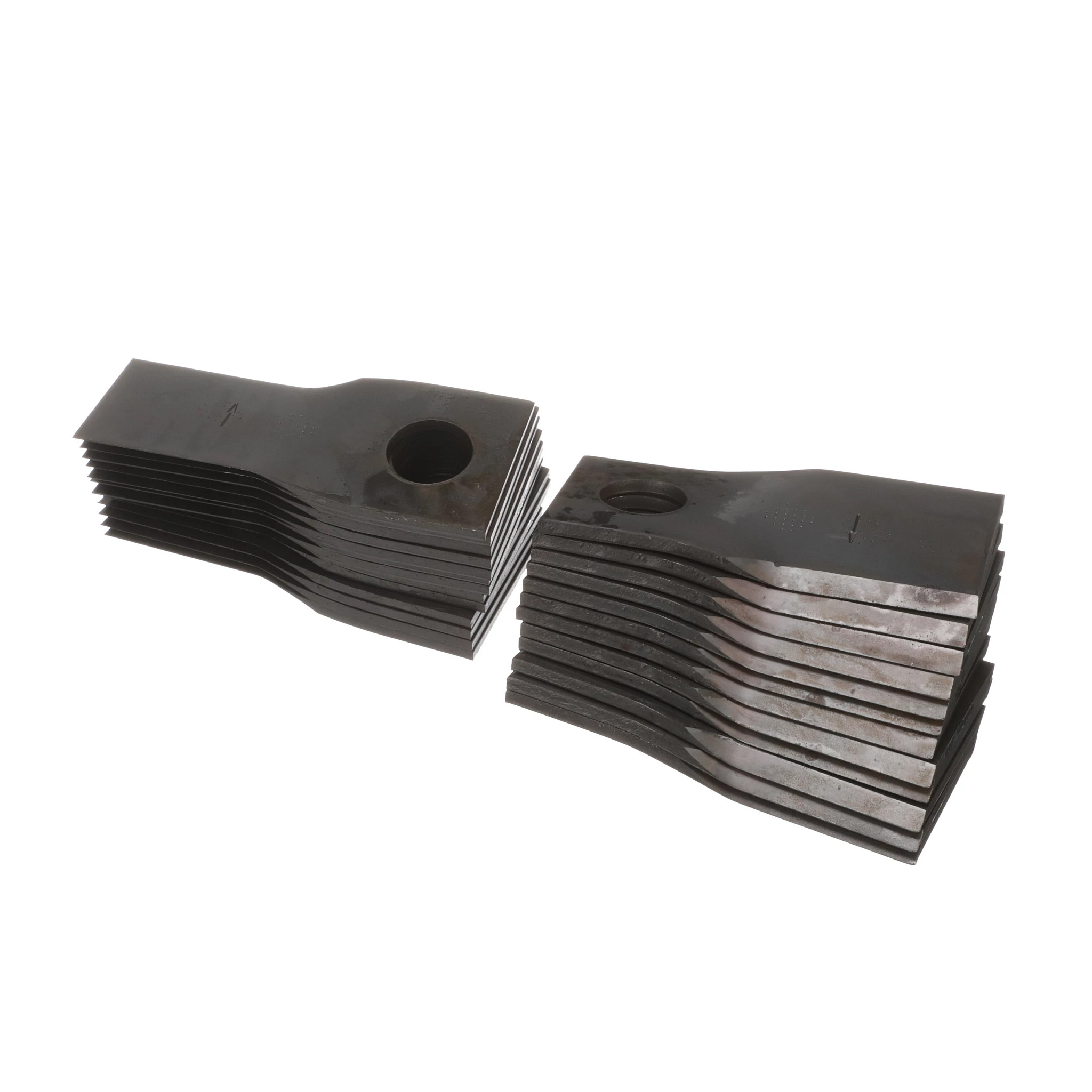

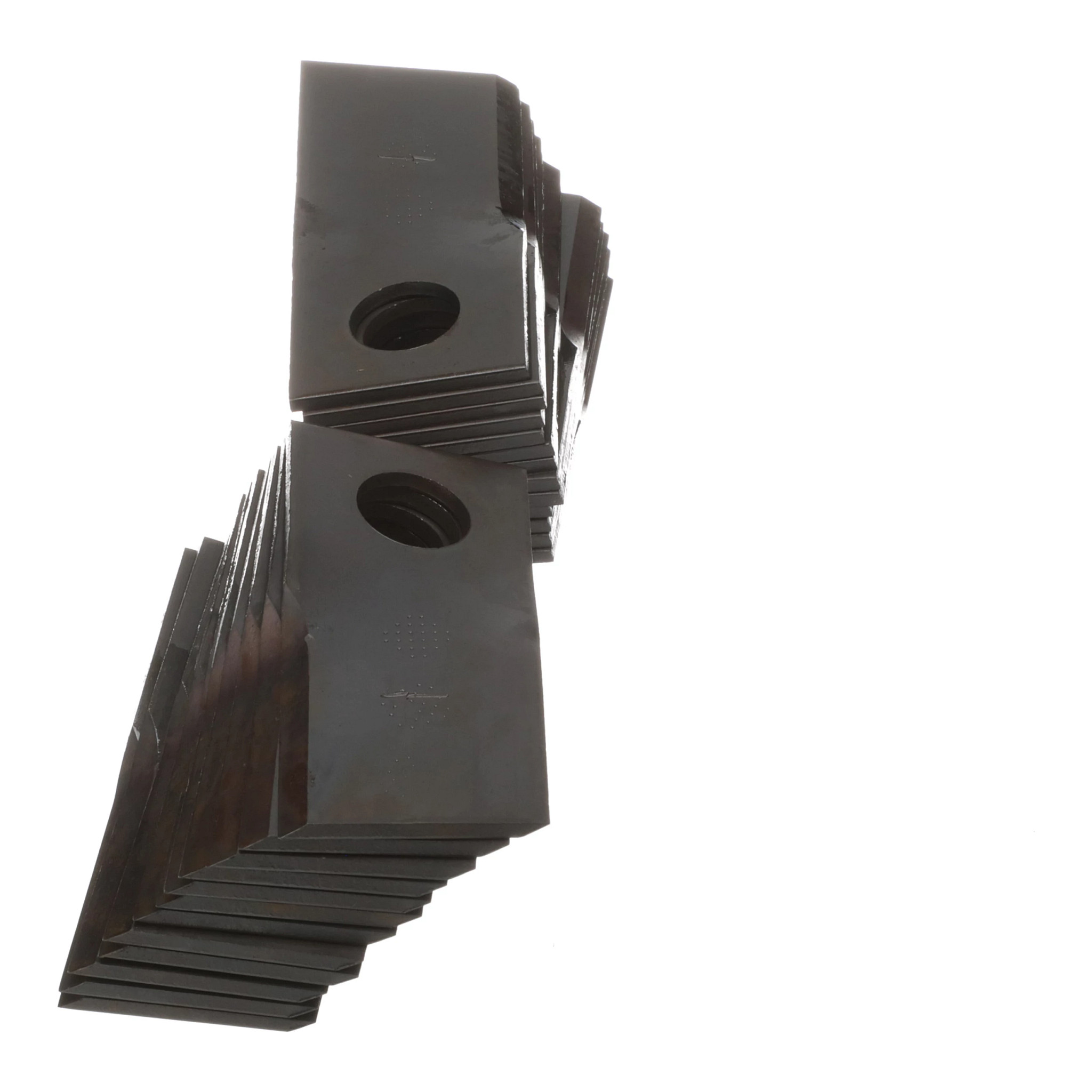

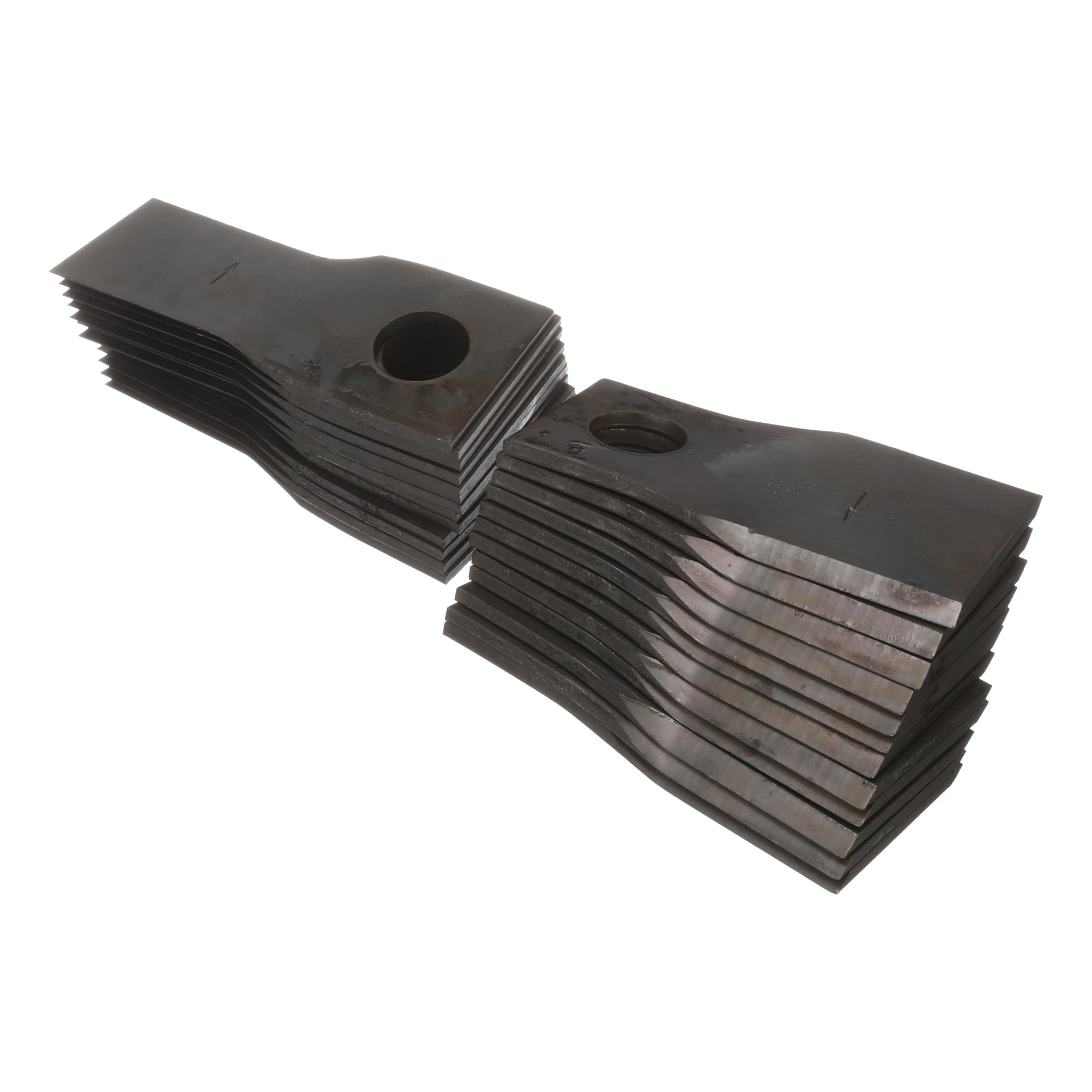

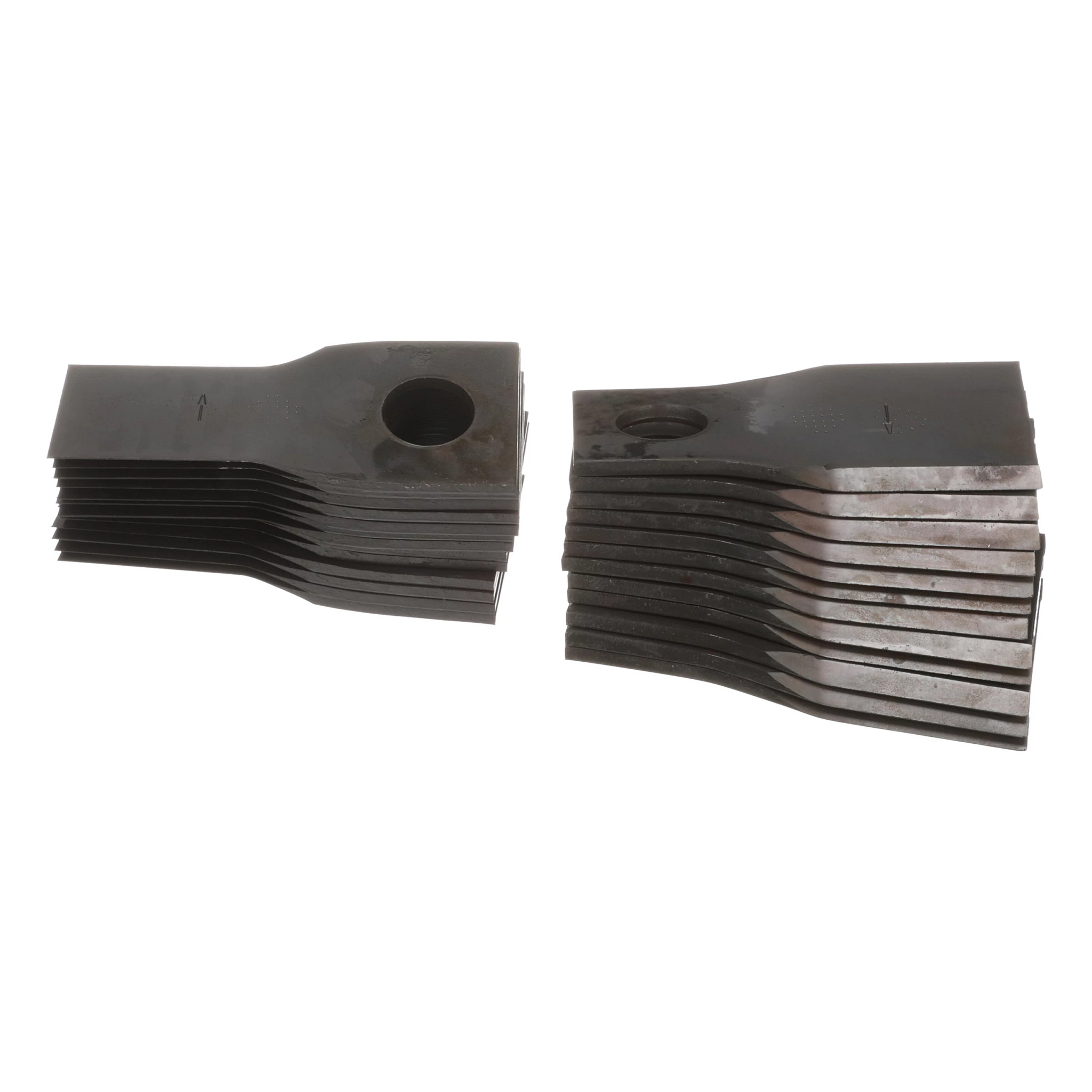

84255699 - Rotary Disc Mower Knife - 14° Clockwise - CASE IH

Part # 84255699

DELIVERY INFO

Please select a dealer to view delivery options

Rotary Disc Mower Knife #84255699 features a 14° twist. Our 14° twist knives are recommended for most crop conditions. The greater twist angle enables the knife’s cutting edge to cut closer to the ground and provide more lifting action to move the crop over the cutter bar and into the conditioner, producing a cleaner cut. The greater twist angle makes them more susceptible to rock damage.

• Twist: 14°
• Rotation: CW
• Edge: Smooth
• Length: 116 mm
• Width: 50 mm
• Tip to Hole Center: 93 mm
• Bolt Hole Diameter: 22.6 mm

From raw material specification to the last production process, extra care has been taken to assure optimum performance and durability.

• The cutting edge is milled, not rolled, for improved sharpness. The milled edge does not extend past the bolt holes, for increased strength
• The new, radial-twist design improves lifting action for a smoother cut
• Disc knives are austempered for better impact absorption

Every production lot is tested against ISO specifications, then the manufacturing and testing processes are verified by stamping a traceable sequential number on each knife. In addition, tests are performed to satisfy standards that exceed ISO requirements.

• Incoming material is inspected, then tagged for traceability
• Bend tests are performed to guard against cracking
• Impact tests are used to check structural integrity
• Cross section analysis assures optimum metallurgical grain structure

Package Weight:
  • 0.151 kg
Package Quantity
  • 1

Rotary Disc Mower Knife #84255699 features a 14° twist. Our 14° twist knives are recommended for most crop conditions. The greater twist angle enables the knife’s cutting edge to cut closer to the ground and provide more lifting action to move the crop over the cutter bar and into the conditioner, producing a cleaner cut. The greater twist angle makes them more susceptible to rock damage.

• Twist: 14°
• Rotation: CW
• Edge: Smooth
• Length: 116 mm
• Width: 50 mm
• Tip to Hole Center: 93 mm
• Bolt Hole Diameter: 22.6 mm

From raw material specification to the last production process, extra care has been taken to assure optimum performance and durability.

• The cutting edge is milled, not rolled, for improved sharpness. The milled edge does not extend past the bolt holes, for increased strength
• The new, radial-twist design improves lifting action for a smoother cut
• Disc knives are austempered for better impact absorption

Every production lot is tested against ISO specifications, then the manufacturing and testing processes are verified by stamping a traceable sequential number on each knife. In addition, tests are performed to satisfy standards that exceed ISO requirements.

• Incoming material is inspected, then tagged for traceability
• Bend tests are performed to guard against cracking
• Impact tests are used to check structural integrity
• Cross section analysis assures optimum metallurgical grain structure
