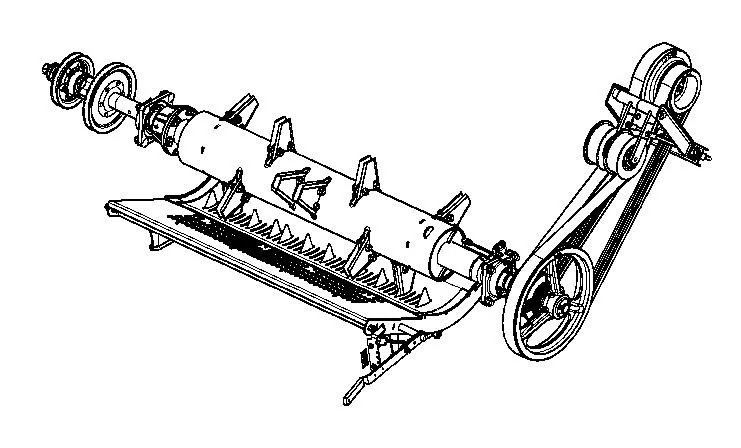

47846361 - Straw Chopper Conversion Kit - CASE CONSTRUCTION

This Kit includes the following parts:

• Part Number
  140048
  Description
  Belleville Washer - 32 mm OD x 2.8 mm Thk.
  Quantity
  1
• Part Number
  140045
  Description
  Belleville Lock Washer - 10mm ID x 22mm OD x 1.6mm Thick.
  Quantity
  12
• Part Number
  14304324
  Description
  Hex Socket Screw - Cl 8.8 - Full Thread - M5 x 20.
  Quantity
  4
• Part Number
  16690924
  Description
  SCREW.
  Quantity
  4
• Part Number
  100016
  Description
  Hex Nut - M10 x 1.5.
  Quantity
  12
• Part Number
  120093
  Description
  Hex Screw - Cl 8.8 - M16.
  Quantity
  1
• Part Number
  12578015
  Description
  Nut.
  Quantity
  4
• Part Number
  130003
  Description
  Cotter Pin - 3 mm OD x 20 mm L.
  Quantity
  1
• Part Number
  130004
  Description
  Cotter Pin - 3.2 mm OD x 25 mm L.
  Quantity
  4
• Part Number
  86507066
  Description
  M8 Flange Nut.
  Quantity
  2
• Part Number
  322357
  Description
  Belleville Washer - 14 mm OD x 1.3 mm Thk.
  Quantity
  4
• Part Number
  33915
  Description
  Snap Ring - 2.32" OD x 0.081" Thk.
  Quantity
  2
• Part Number
  86592700
  Description
  Washer - Hardened Steel - 10.5 mm ID x 28 mm OD x 4 mm Thk.
  Quantity
  4
• Part Number
  47577188
  Description
  Set Screw Collar - Zinc-Plated - 35 mm ID x 56 mm OD x 17 mm W.
  Quantity
  1
• Part Number
  86633356
  Description
  BOLT, CARRIAGE.
  Quantity
  12
• Part Number
  86639110
  Description
  PIN, CLEVIS.
  Quantity
  1
• Part Number
  87578082
  Description
  Frame - Knife Bar - Standard.
  Quantity
  1
• Part Number
  87578084
  Description
  Narrow Knife Support.
  Quantity
  3
• Part Number
  47661876
  Description
  Flanged Ball Bearing - 62 mm ID x 196 mm OD.
  Quantity
  1
• Part Number
  86997386
  Description
  Bushing - 11 mm ID x 22 mm OD.
  Quantity
  4
• Part Number
  87016581
  Description
  Hex Flange Nut - CI 10 - M16 x 2.
  Quantity
  4
• Part Number
  412126
  Description
  Hex Lock Nut - M12 x 1.75.
  Quantity
  1
• Part Number
  87633175
  Description
  Retainer Knife - Standard Paint.
  Quantity
  6
• Part Number
  87106692
  Description
  Straw Chopper Stationary Knife.
  Quantity
  12
• Part Number
  87664050
  Description
  WASHER.
  Quantity
  1
• Part Number
  87675531
  Description
  BOLT, FLANGE.
  Quantity
  2
• Part Number
  87681210
  Description
  Hex Flange Nut - Cl 10 - M8 x 1.25.
  Quantity
  4
• Part Number
  87682383
  Description
  BOLT, CARRIAGE.
  Quantity
  2
• Part Number
  443898
  Description
  Ball Bearing - ISO 6205 LLU.
  Quantity
  2
• Part Number
  87698763
  Description
  Flange Bolt.
  Quantity
  4
• Part Number
  87698837
  Description
  Heavy Hex Flange Bolt - Cl 10.9 - Full Thread - M10 x 30.
  Quantity
  4
• Part Number
  87698849
  Description
  Heavy Hex Flange Bolt - Cl 10.9 - M16 x 50.
  Quantity
  4
• Part Number
  87343550
  Description
  BOLT, FLANGE.
  Quantity
  6
• Part Number
  87364
  Description
  WASHER.
  Quantity
  5
• Part Number
  87391950
  Description
  U-BOLT.
  Quantity
  9
• Part Number
  86050279
  Description
  Hex Flange Nut - Cl 10 - M10 x 1.5.
  Quantity
  5
• Part Number
  86050300
  Description
  NUT, FLANGE.
  Quantity
  2
• Part Number
  86505868
  Description
  Hex Serrated Flange Nut - Cl 8 - M8 x 1.25.
  Quantity
  18
