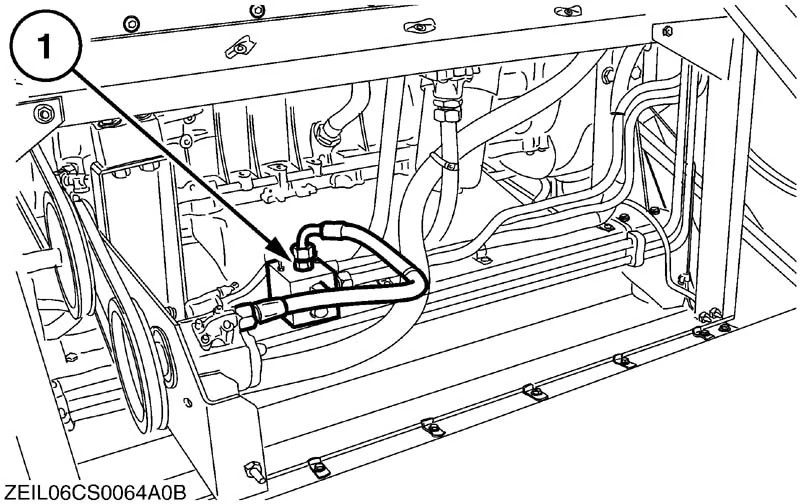

87683889 - Reel Hydraulic Rebuild Kit - NEW HOLLAND AGRICULTURE

This Kit includes the following parts:

• Part Number
  140045
  Description
  Belleville Lock Washer - 10mm ID x 22mm OD x 1.6mm Thick.
  Quantity
  25
• Part Number
  16043624
  Description
  SCREW.
  Quantity
  10
• Part Number
  190003800038
  Description
  SCREW.
  Quantity
  1
• Part Number
  100016
  Description
  Hex Nut - M10 x 1.5.
  Quantity
  10
• Part Number
  120056
  Description
  Hex Bolt - Cl 8.8 - M6 x 50.
  Quantity
  10
• Part Number
  919316
  Description
  PLATE.
  Quantity
  1
• Part Number
  9513143
  Description
  HYD CONNECTOR.
  Quantity
  1
• Part Number
  86512446
  Description
  Carriage Bolt - Cl 8.8 - M10 x 1.5 x 30.
  Quantity
  10
• Part Number
  80754165
  Description
  V-Belt - Raw Edge - 838 mm L x 12 mm W.
  Quantity
  1
• Part Number
  322357
  Description
  Belleville Washer - 14 mm OD x 1.3 mm Thk.
  Quantity
  25
• Part Number
  322358
  Description
  Belleville Lock Washer - M8 Bolt Size x 18mm OD x 1.4mm Thick.
  Quantity
  25
• Part Number
  326082
  Description
  Hose Clamp - 18 mm-25 mm Dia.
  Quantity
  2
• Part Number
  335168
  Description
  FERRULE.
  Quantity
  5
• Part Number
  335170
  Description
  NUT, PIPE UNION.
  Quantity
  2
• Part Number
  335173
  Description
  HYD CONNECTOR.
  Quantity
  2
• Part Number
  335174
  Description
  NIPPLE.
  Quantity
  2
• Part Number
  337208
  Description
  ELBOW, 90.
  Quantity
  1
• Part Number
  353308
  Description
  Hex Lock Nut - M6 x 1.
  Quantity
  10
• Part Number
  356464
  Description
  SCREW, HEX SOC.
  Quantity
  2
• Part Number
  360296
  Description
  BOLT.
  Quantity
  1
• Part Number
  86633352
  Description
  Hose Clamp - Worm Gear - Stainless Steel - 57 mm-79 mm Dia.
  Quantity
  10
• Part Number
  379431
  Description
  CONNECTION, 3 WAY.
  Quantity
  1
• Part Number
  394372
  Description
  HYD CONNECTOR.
  Quantity
  2
• Part Number
  394373
  Description
  HYD CONNECTOR.
  Quantity
  1
• Part Number
  84435503
  Description
  Hyd Connector.
  Quantity
  1
• Part Number
  397645
  Description
  PLATE.
  Quantity
  1
• Part Number
  84444581
  Description
  Hydraulic Valve.
  Quantity
  1
• Part Number
  84007699
  Description
  Cover Plate.
  Quantity
  1
• Part Number
  412499
  Description
  BOLT.
  Quantity
  2
• Part Number
  84042442
  Description
  Fitting.
  Quantity
  1
• Part Number
  84089718
  Description
  Screw.
  Quantity
  2
• Part Number
  430356
  Description
  CLAMP.
  Quantity
  14
• Part Number
  433007
  Description
  CLAMP.
  Quantity
  8
• Part Number
  433100
  Description
  Hydraulic Hose Clamp.
  Quantity
  4
• Part Number
  450594
  Description
  ELBOW.
  Quantity
  1
• Part Number
  451556
  Description
  Hydrostatic Drive Hose - 19.05 mm ID x 550 mm L.
  Quantity
  1
• Part Number
  455556
  Description
  CLAMP.
  Quantity
  1
• Part Number
  84814948
  Description
  SUPPORT.
  Quantity
  7
• Part Number
  47360258
  Description
  Quick Coupling - Male.
  Quantity
  1
• Part Number
  514920
  Description
  Hose Clamp - Worm Gear - Stainless Steel - 20.6 mm-38.1 mm Dia.
  Quantity
  4
• Part Number
  86500688
  Description
  Hex Nut - M6 x 1.
  Quantity
  10
• Part Number
  89815904
  Description
  HOSE, FLEXIBLE.
  Quantity
  1
• Part Number
  84012346
  Description
  Tube.
  Quantity
  2
• Part Number
  84437854
  Description
  Hyd Connector.
  Quantity
  1
• Part Number
  87615686
  Description
  Hose.
  Quantity
  1
• Part Number
  87624525
  Description
  Reel Drive Tube.
  Quantity
  1
• Part Number
  87624527
  Description
  Reel Drive Tube.
  Quantity
  1
• Part Number
  87323482
  Description
  Pulley.
  Quantity
  1
• Part Number
  87324033
  Description
  Bracket.
  Quantity
  1
• Part Number
  87324299
  Description
  Plate.
  Quantity
  1
• Part Number
  87324411
  Description
  Pulley.
  Quantity
  1
• Part Number
  87497633
  Description
  Hose.
  Quantity
  1
• Part Number
  87497634
  Description
  Hose.
  Quantity
  1
• Part Number
  87340938
  Description
  Hydraulic Pump.
  Quantity
  1
• Part Number
  87669602
  Description
  Hyd Tube.
  Quantity
  1
• Part Number
  87669604
  Description
  Hyd Tube.
  Quantity
  1
• Part Number
  87364730
  Description
  Hyd Tube.
  Quantity
  1
• Part Number
  87364732
  Description
  Reel Drive Tube - 16 mm Dia x 1366 mm L.
  Quantity
  1
• Part Number
  87364734
  Description
  Hyd Tube.
  Quantity
  1
• Part Number
  87675556
  Description
  Plate.
  Quantity
  1
• Part Number
  87388987
  Description
  Bracket.
  Quantity
  1
• Part Number
  87389995
  Description
  Hyd Tube.
  Quantity
  1
• Part Number
  87392090
  Description
  Reel Drive Tube - 18 mm Dia x 1472 mm L.
  Quantity
  1
